    1SFA898204R7000

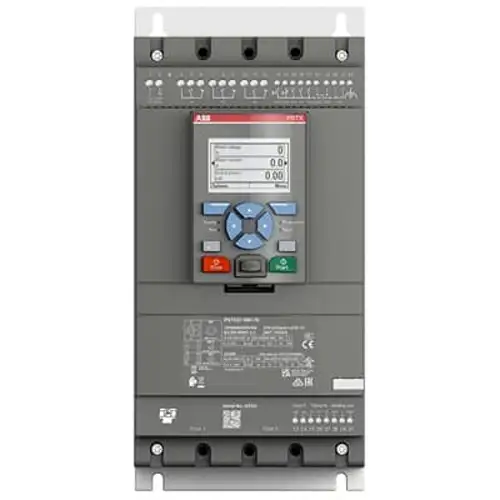

    The softstarter PSTX37-690-70 has a rated maximum operational current of 37 A with an operating voltage span from 208...690 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz.

    HARDWARE

    ||

    ABB

    5.00 10

    10 Review(s)
    $1,610.14 $1,341.78 / each
    1
    1SFA898204R7000
    ABB
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Dimensions

    Product Net Width:
    150 mm
    Product Net Height:
    314 mm
    Product Net Depth / Length:
    198 mm
    Product Net Weight:
    4.6 kg

    Technical

    Rated Operational Voltage:
    208 ... 690 V AC
    Rated Control Supply Voltage (Us):
    100 ... 250 V AC
    Rated Control Circuit Voltage (Uc):
    24 V DC
    Rated Frequency (f):
    50/60 Hz
    Main Circuit 50 / 60 Hz
    Rated Operational Power - In-Line Connection (Pe):
    (230 V) 9 kW
    (400 V) 18.5 kW
    (500 V) 22 kW
    (690 V) 30 kW
    Rated Operational Current - In-Line Connection (Ie):
    37 A
    Rated Operational Power - Inside Delta Connection:
    at 230 V 15 kW
    at 400 V 30 kW
    at 500 V 37 kW
    at 690 V 55 kW
    Rated Operational Current - Inside Delta Connection:
    64 A
    Service Factor Percentage:
    100 %
    Overload Protection:
    Built-in electronic overload protection
    Integrated Electronic Overload:
    Yes
    Adjustable Rated Motor Current Ie:
    30 ... 100 %
    Starting Capacity at Maximum Rated Current Ie:
    4xIe for 10s
    Ramp Time:
    1 ... 120 second [unit of time]
    Initial Voltage During Start:
    10 ... 99 %
    Step Down Voltage Special Ramp:
    100 ... 10 %
    Current Limit Function:
    1.5 ... 7.5 xle
    Switch for Inside Delta Connection:
    Yes
    Run Signal Relay:
    Yes
    By-pass Signal Relay:
    Yes
    Fault Signal Relay:
    Yes
    Overload Signal Relay:
    Yes
    Analog Outputs:
    0…10 V, 0…20 mA, 4…20 mA
    Signal Indication Ready to Start/Standby ON (LED):
    Green
    Signal Indication Running R (LED):
    Green
    Signal Indication Protection (LED):
    Yellow
    Signal Indication Fault (LED):
    Red
    Communication:
    Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
    Degree of Protection:
    IP00
    Terminal Type:
    Cable Clamp
    Connecting Capacity Main Circuit:
    Hole Diameter 8.5 mm
    Connecting Capacity Control Circuit:
    Rigid 1 x 2.5 mm²
    Connecting Capacity Supply Circuit:
    Rigid 1 x 2.5 mm²
    Tightening Torque:
    Main Circuit 8 N·m
    Product Main Type:
    PSTX37
    Function:
    Auto phase sequence detection
    Automatic restart
    Current limit
    Current limit ramp
    Dual current limit
    Dynamic brake
    Electricity metering
    Electronic overload Time-to-cool
    Emergency mode
    Event log
    Protection Function:
    Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
    Warning Details:
    Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning

    Technical UL/CSA

    Maximum Operating Voltage UL/CSA:
    Main Circuit 690 V
    Tightening Torque UL/CSA:
    Main Circuit 70.8

    Environmental

    Ambient Air Temperature:
    Operation -25 ... +60 °C
    Storage -40 ... +70 °C
    Degree of Protection:
    IP00

    Material Compliance

    Conflict Minerals Reporting Template (CMRT):
    9AKK108467A5658
    REACH Declaration:
    2CMT2022-006481
    RoHS Information:
    2CMT2022-006500
    RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
    Toxic Substances Control Act - TSCA:
    2CMT2023-006524
    WEEE B2C / B2B:
    Business To Business
    WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

    Certificates and Declarations

    CQC Certificate:
    CN: CQC2014010304744405 / SE: CQC2014010304724380
    Declaration of Conformity - CCC:
    CN: 2020980304001091 / SE: 2020980304001489
    Declaration of Conformity - CE:
    2CMT005209

    Container Information

    Package Level 1 Width:
    200 mm
    Package Level 1 Depth / Length:
    282 mm
    Package Level 1 Height:
    388 mm
    Package Level 1 Gross Weight:
    5.6 kg
    Package Level 1 EAN:
    7320500501429
    Package Level 1 Units:
    box 1 piece

    Classifications

    Object Classification Code:
    Q
    ETIM 7:
    EC000640 - Soft starter
    ETIM 8:
    EC000640 - Soft starter
    ETIM 9:
    EC000640 - Soft starter
    eClass:
    V11.0 : 27370907
    UNSPSC:
    39121521
