    PILZ

    312066 PILZ


    left swipe Rotate image right swipe

    Out Of Stock

    312066

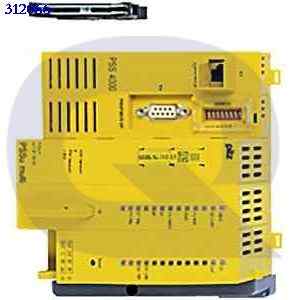

    PSSu, head module, control system PSSu multi, failsafe, PL e, SIL CL 3, 1 D-Sub female connector 9-pin, PROFIBUS-DP Slave with PROFIsafe, transmission rates 9.6 kBit/s - 12 MBit/s, 1 RJ45 port, SafetyNET pRTFN, Modbus/TCP, Raw UDP, Raw TCP, SD card.

    ACCESSORIES

    ||

    PILZ

    5.00 10

    10 Review(s)
    $3,780.36 $3,150.30 / each
    166187
    312066
    PILZ
    FACTORY SEALED
    312066.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    ApprovalCE
    UKCA
    cULus Listed
    TÜV
    EAC (Eurasian)
    Application rangeStandard/failsafe

    Technical data
    Purpose of U1Module supply
    Supply voltage (V)24  V
    Type of supply voltage U1DC
    Power consumption DC16.1  W
    Purpose of U2Periphery supply
    Supply voltage 2 (V)24  V
    Type of supply voltage U2DC
    Tolerance of U2-30 %/+25 %
    Pot. isolation UINT1 to U23050 V
    Potential isolation U1 to U23050 V
    Purpose of UINT1int. system voltage
    Type of UINT1DC
    Tolerance of UINT1-2 %/+3 %
    Max. curr. contin. oper. UINT12  A
    Bridge U-interrupt UINT1 stan.EN 61131-2
    EN 61496-1
    UINT1 short circuit proofYes
    IEC 61131 programmingNo
    Multi programmingYes
    Non-volatile variablesNo
    Time deviation+/- 10s/day
    RAM128 MB
    User memory total2 MB
    Plug-in memorySD card
    Connector type Safetynet i/fRJ45
    Safetynet transmission rate10 MBit/s
    100 MBit/s
    Setting SafetyNet trans.rateAutomatic
    SafetyNET p cycle time10 ... 60 000 ms
    Profibus typeSlave
    Perm. PROFIB. statn. addresses0 ... 126d
    Setting PROFIBUS station addr.DIP switch
    PROFIBUS F-address1 ... 511d
    PROFIBUS F-address settingDIP switch
    Settable trans.rate PROFIBUS185.5 kBit/s
    6 MBit/s
    500 kBit/s
    93.75 kBit/s
    19.2 kBit/s
    12 MBit/s
    1.5 MBit/s
    9.6 kBit/s
    3 MBit/s
    45.45 kBit/s
    Trans. rate setting PROFIBUSAutomatic
    Connector type Profibus inter.9-pin D-Sub female connector
    Name PROFIBUS protocolDPV1
    PROFIsafe V2.4
    PROFIBUS operating modesFreeze Mode
    Set Slave Address
    Sync Mode
    AutoBaud
    Name description file profibPilz0D9A.gsd
    PROFIBUS manufacturer ID0CB0h
    PROFIBUS cycle time2 ... 300 000 ms
    PROFIsafe cycle time4 ... 32000 ms
    MODBUS cycle time2 ... 2 000 000 ms
    RAW UDP cycle time2 ... 2 000 000 ms
    Climatic suitability to ...EN 60068-2-30
    EN 60068-2-2
    EN 60068-2-1
    EN 60068-2-78
    EN 60068-2-14
    Ambient temperature0 - 60  °C
    Climatic suitability standardEN 60068-2-78
    Humidity rating93 % r. h. at 40 °C
    Condensation permitted?Not permitted
    Perm. operating height ASL2000 m
    EMC to standard ...EN 61000-6-2
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-6-4
    EN 61000-4-6
    EN 61000-4-2
    EN 61000-4-3
    Vibration to standard ...EN 60068-2-6
    Acc. shock to standard115g
    Acc. shock to standard2
    Clearance & creepage dist. toEN 60664-1
    Overvoltage categoryII
    Pollution degree clear.&creep.2
    Protection type, mounting
    Protection type, housing
    Housing material lower sectionPC
    Connection terminalScrew terminal
    Spring-loaded terminal
    Terminal styleplug-in
    Flex. cond. c/s AWG info24 - 12 AWG
    Height dimension125.6  mm
    Width dimension130  mm
    Depth dimension83.7  mm
    Net weight405  g
    Gross weight415  g
    REACh compliancecontains min. 1 SVHC-substance
    WEEE classifikation (08/2018)5 devices (feed size < 50cm>
    ECLASS versionECLASS-9.1
    ECLASS Reference Feature27242208
    ETIM VersionETIM-7.0
    ETIM Reference GroupEG000024
