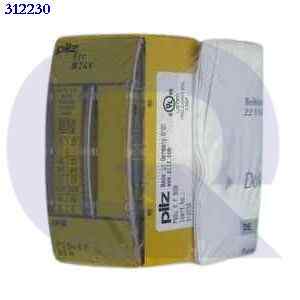

312230
PSSu, electronic module, failsafe, supply voltage, infeed periphery supply 24 V DC 8 A, infeed C-rail failsafe block switching of periphery supply.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  cULus Listed  KOSHA  TÜV  EAC (Eurasian)  |
| Application range | Standard/Fail-safe  |
Â
Technical data
Electrical data
| Purpose of U2 | Periphery Supply  |
| Supply voltage 2 (V) | 24 Â V |
| Type of supply voltage U2 | DC Â |
| Tolerance of U2 | -30 %/+25 % Â |
| Pot. isolation UINT1 to U2 | 3050 V Â |
Relay outputs
| Safety contacts: AC at UL | 240 V AC G. P. Â |
| Safety contacts: pilot duty | 3.0 A Â |
| Contact protection BSW module | VDE 0660 Â |
Environmental data
| Climatic suitability to ... | EN 60068-2-30 Â EN 60068-2-2 Â EN 60068-2-1 Â EN 60068-2-78 Â EN 60068-2-14 Â |
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | 0 - 60  °C |
| Ambient temp. with UL | 60 °C  |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-30 Â EN 60068-2-78 Â |
| Humidity rating | 93 % r. F. bei 40 °C  |
| Condensation permitted? | unzulässig  |
| Perm. operating height ASL | 2000 m  |
| EMC to standard ... | EN 61000-4-4 Â EN 61000-6-2 Â EN 61000-4-5 Â EN 61000-4-6 Â EN 61000-6-4 Â EN 61000-4-2 Â EN 61000-4-3 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Acc. shock to standard1 | 15g  |
| Acc. shock to standard2 | 10g  |
| Clearance & creepage dist. to | EN 60664-1 Â |
| Overvoltage category | II Â |
| Pollution degree clear.&creep. | 2 Â |
| Protection type standard | EN 60529 Â |
| Protection type, mounting | IP54 Â |
| Protection type, housing | IP20 Â |
| Terminal protection type | IP20 Â |
Mechanical data
| Housing material lower section | PC Â |
| Housing material front plate | PC Â |
| Housing material code | PA Â |
| Terminal style | steckbar  |
| Height dimension | 76 Â mm |
| Width dimension | 25.2 Â mm |
| Depth dimension | 60.2 Â mm |
| Net weight | 87 Â g |
| Gross weight | 95 Â g |
| Name of coding element | I Â |
| Colour of coding element | gelb  |
Environment
| REACh compliance | contains min. 1 SVHC-substance  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27242610 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
