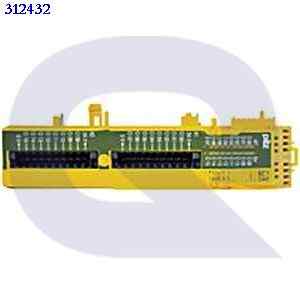

312432
PSSu, compact module, Standard, digital inputs and outputs, 16 outputs, 0.5 A, single-pole, positive-switching, short-circuit proof,overload-proof.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  BG  cULus Listed  TÜV  |
| Application range | Standard  |
Â
Technical data
Electrical data
| Purpose of U3 | Â |
| Type of supply voltage U3 | DC Â |
| Tolerance of U3 | -30 %/+25 % Â |
| Permitted loads | Resistive  Inductive  Capacitive  |
Semiconductor outputs
| DC voltage at output | 24 V DC Â |
| Potential isolation S/C O | Yes  |
| S/C output short circuit proof | Yes  |
Environmental data
| Climatic suitability to ... | EN 60068-2-30 Â EN 60068-2-2 Â EN 60068-2-1 Â EN 60068-2-78 Â EN 60068-2-14 Â |
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | 0 - 60  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-30 Â EN 60068-2-78 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| Condensation permitted? | Not permitted  |
| Perm. operating height ASL | 2000 m  |
| EMC to standard ... | EN 61000-4-8 Â EN 55011: Class A Â EN 61000-4-9 Â EN 61000-4-11 Â EN 61000-4-4 Â EN 61000-4-5 Â EN 61000-4-6 Â EN 61000-4-2 Â EN 61000-4-3 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Acc. shock to standard1 | 15g  |
| Acc. shock to standard2 | Â |
| Clearance & creepage dist. to | EN 61131-2 Â EN 60664-1 Â |
| Overvoltage category | II Â |
| Pollution degree clear.&creep. | 2 Â |
| Protection type standard | ENÂ 60529 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
Mechanical data
| Housing material lower section | PC Â |
| Housing material front plate | PC Â |
| Housing material label holder | PC Â |
| Terminal style | plug-in  |
| Height dimension | 128.9 Â mm |
| Width dimension | 30 Â mm |
| Depth dimension | 56 Â mm |
| Net weight | 92 Â g |
| Gross weight | 105 Â g |
Environment
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27242604 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
