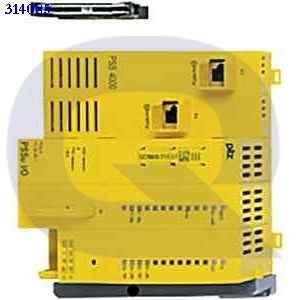

314085
PSSu, head module, control system PSSu I/O, failsafe and standard, PL e, SIL CL 3, 2 RJ45 ports, SafetyNET p RTFN, for increased environmental requirements.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  UKCA  cULus Listed  TÜV  EAC (Eurasian)  |
| Application range | Standard/failsafe  |
Â
Technical data
Electrical data
| Purpose of U1 | Module supply  |
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 16 Â W |
| Purpose of U2 | Periphery supply  |
| Supply voltage 2 (V) | 24 Â V |
| Type of supply voltage U2 | DC Â |
| Tolerance of U2 | -30 %/+25 % Â |
| Purpose of UINT1 | int. system voltage  |
| Type of UINT1 | DC Â |
| Tolerance of UINT1 | -2 %/+3 % Â |
| Max. curr. contin. oper. UINT1 | 2 Â A |
| Bridge U-interrupt UINT1 stan. | EN 61131-2 Â EN61496-1 Â |
| UINT1 short circuit proof | Yes  |
Programming
| IEC 61131 programming | No  |
| Multi programming | No  |
| Non-volatile variables | No  |
CPU
| Time deviation | +/- 10s/day  |
| RAM | 64 MB Â |
Removable storage media
| Plug-in memory | SD card  |
SafetyNET p interface
| Connector type Safetynet i/f | RJ45 Â |
| Safetynet transmission rate | 100 MBit/s  |
| Setting SafetyNet trans.rate | Automatic  |
| SafetyNET p cycle time | 2 ... 60 000 ms  |
Environmental data
| Climatic suitability to ... | EN 60068-2-30 Â EN 60068-2-2 Â EN 60068-2-1 Â EN 60068-2-78 Â EN 60068-2-14 Â |
| Ambient temperature | -40 - 70  °C |
| Climatic suitability standard | EN 60068-2-78 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| Condensation permitted? | Briefly  |
| Perm. operating height ASL | 5000 m  |
| EMC to standard ... | EN 61131-2 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Broad band noise to | EN 60068-2-64 Â |
| Acc. shock to standard1 | 15g  |
| Acc. shock to standard2 | Â |
| Clearance & creepage dist. to | EN 60664-1 Â EN 61131-2 Â |
| Overvoltage category | II Â |
| Pollution degree clear.&creep. | 2 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
Potential separation
| Potential isolation 1 between | Periphery and module supply  |
| Type of potential isolation 1 | Functional insulation  |
| Potential isolation 2 between | Periphery supply & system V. Â |
| Type of potential isolation 2 | Functional insulation  |
Mechanical data
| Housing material lower section | PC Â |
| Connection terminal | Screw terminal  Spring-loaded terminal  |
| Terminal style | plug-in  |
| Flex. cond. c/s AWG info | 24 - 12 AWG Â |
| Height dimension | 125.6 Â mm |
| Width dimension | 130 Â mm |
| Depth dimension | 83.7 Â mm |
| Net weight | 378 Â g |
| Gross weight | 413 Â g |
Environment
| REACh compliance | contains min. 1 SVHC-substance  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27242207 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000024Â Â |
