401110

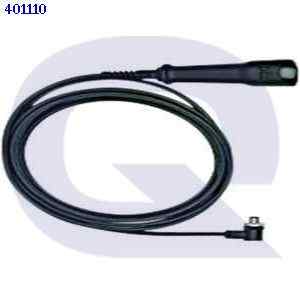

PITenable 3-step enable switch, 5 m connection cable and M12 angled connector.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE Â |
| Self-monitored | no  |
Â
Technical data
Relay outputs
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 Â |
| Voltage AC15 safety cont. | 125 Â V |
| Max. current AC15 safety cont. | 0.3 Â A |
| Voltage DC13 safety cont. | 30 Â V |
| Max.current DC12 safety cont. | 1 Â A |
Environmental data
| Ambient temperature | 0 - 50  °C |
| Protection type, housing | Â |
Mechanical data
| Length cable | 5 Â m |
| Material of cable insulation 1 | PUR Â |
| Mounting position | any  |
| Connection type | M12, 5-pin male, angled  |
| Housing material lower section | PP Â |
| Height dimension | 125 Â mm |
| Width dimension | 45 Â mm |
| Depth dimension | 45 Â mm |
| Diameter | 45 Â mm |
| Net weight | 383 Â g |
| Gross weight | 409 Â g |
Environment
| RoHS directive | 2011/65/EU Â 2015/863/EU Â |
| RoHS conformity | yes  |
| RoHS exceptions | no  |
| REACh compliance | Contains no SVHC substances  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27371238 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000026Â Â |
