Quality Assurance
OEM Quality Spare Parts.
Out Of Stock

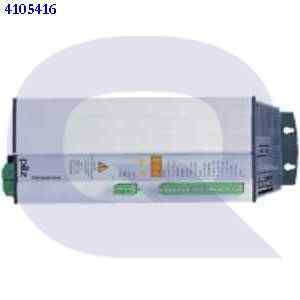

4105416
Servo amplifier, technical details at 3 x 400 V AC: Continuous output current: 20 A, Imax (5 sec.) = 40 A, power consumption at S1 operation: 14 kVA, integrated brake resistor.
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  cULus Listed  |
Â
Technical data
Electrical data
| Purpose of U1 | Mains supply  |
| Supply voltage (V) | 230 Â V |
| Type of supply voltage U1 | AC Â |
| Purpose of U2 | supply  |
| Supply voltage 2 (V) | 24 Â V |
| Type of supply voltage U2 | DC Â |
Power section
| Peak current for 5 s | 40 Â A |
Analog inputs
| Number of analogue inputs | 2 Â |
| Type of analogue inputs | Voltage  |
| Resolution of analogue inputs | 14 Â Bit 12 Â Bit |
Inputs
| Number of digital inputs | 4 Â |
| U input to EN 61131-2 Type 1 | 24 V DC Â |
Analogue outputs
| Number of analogue outputs | 2 Â |
| Type of analogue outputs | Voltage  |
| Resolution, analogue outputs | 10 Â Bit |
CANopen interface
| Number of CANopen interfaces | 1 Â |
Serial interface
| Number of RS 232 interfaces | 1 Â |
Mechanical data
| Height dimension | 325 Â mm |
| Width dimension | 120 Â mm |
| Depth dimension | 265 Â mm |
| Net weight | 7500 Â g |
| Gross weight | 8800 Â g |
Environment
| RoHS conformity | yes  |
| REACh compliance | Contains no SVHC substances  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
