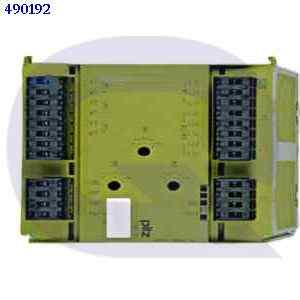

490192
True power converter, measuring equipment for rated & absorbed true power, up to 3 motors/generators, measuring voltage 230 V AC, UB = 24 V DC, width 90 mm.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE Â |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 2.5 Â W |
| Max. device circuit breaker | Max. conductor cross section  |
Measuring circuit
| U meas. range analogue input | 230 Â V |
| I meas. range analogue input | 0 - 10 Â A |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 Â |
| Ambient temperature | 0 - 60  °C |
| Condensation permitted? | Not permitted  |
| EMC to standard ... | EN 61000-6-2 Â EN 61000-6-4 Â |
| Vibration to standard ... | EN 60068-2-6 Â |
| Clearance & creepage dist. to | EN 60947-1 Â |
| Protection type, mounting | Â |
| Protection type, housing | Â |
| Terminal protection type | Â |
Mechanical data
| Mounting position | any  |
| Housing material lower section | PPO UL 94 V0 Â |
| Housing material front plate | ABS UL 94 V0 Â |
| Connection terminal | Spring-loaded terminal  |
| Terminal style | plug-in  |
| Flex. cond. c/s AWG info | 22 - 12 AWG Â |
| Height dimension | 90 Â mm |
| Width dimension | 94 Â mm |
| Depth dimension | 121 Â mm |
| Net weight | 410 Â g |
| Gross weight | 465 Â g |
Environment
| REACh compliance | contains min. 1 SVHC-substance  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27371806 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000019Â |
