540303

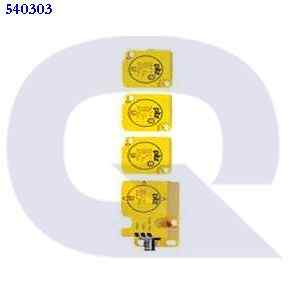

RFiD safety switch, 2 safe SC outputs, 5-pin M12 male connector, one actuation direction, IP67, typ. operating distance 11 mm, Sao = 8mm, Sar = 20 mm, PU = 1 piece coded switch with three actuators (OSSD1 &2, OSSD1, OSSD2).
||
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
General data
| Approval | CE  cULus Listed  FCC  IC  TÜV  EAC (Eurasian)  |
| Sensor principle | Transponder  |
| Coding level to ISO 14119 | Low  |
| Classification to EN 60947-5-3 | PDDB Â |
| Transponder coding | coded  |
| Suitable for series connection | no  |
| unit type | Unit  |
Â
Technical data
Electrical data
| Supply voltage (V) | 24 Â V |
| Type of supply voltage U1 | DC Â |
| Power consumption DC | 2 Â W |
Semiconductor outputs
| Number of OSSD outputs | 2 Â |
| Potential isolation S/C O | No  |
| S/C output short circuit proof | Yes  |
| Utilisation cat. to ENÂ 60947-1 | DC-12 Â |
Environmental data
| Ambient temperature standard | EN 60068-2-14 Â |
| Ambient temperature | -25 - 55  °C |
| Storage temperature standard | EN 60068-2-1/-2 Â |
| Climatic suitability standard | EN 60068-2-78 Â |
| Humidity rating | 93 % r. h. at 40 °C  |
| EMC to standard ... | EN 60947-5-3 Â |
| Vibration to standard ... | EN 60947-5-2 Â |
| Acc. shock to standard1 | 30g  |
| Overvoltage category | III Â |
| Pollution degree clear.&creep. | 3 Â |
| Protection type, housing | Â |
Switching distances
| Change op. dist. temp.change | +-0.01mm/°C  |
Mechanical data
| Type 1 actuator | PSEN cs1.19 Â |
| Sensor can be flush-mounted | Yes, follow installation guide  |
| Connection type | M12, 5-pin male  |
| Housing material upper part | PBT Â |
| Height dimension | 75 Â mm |
| Width dimension | 40 Â mm |
| Depth dimension | 40 Â mm |
| Net weight | 190 Â g |
| Gross weight | 239 Â g |
Transponder
| Operating frequency | 122 kHz - 128 kHz  |
Environment
| RoHS directive | 2011/65/EU Â 2015/863/EU Â |
| RoHS conformity | yes  |
| RoHS exceptions | no  |
| REACh compliance | Contains no SVHC substances  |
| WEEE classifikation (08/2018) | 5 devices (feed size < 50cm> |
Commercial data
| ECLASS version | ECLASS-9.1 Â |
| ECLASS Reference Feature | 27272403 Â |
| ETIM Version | ETIM-7.0 Â |
| ETIM Reference Group | EG000026Â Â |
