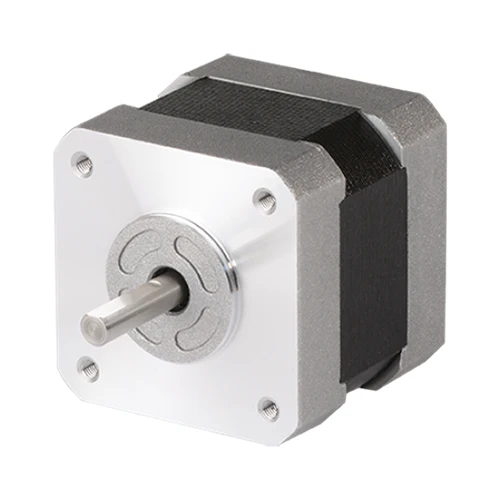

A1K-S543
Motor, 5 Phase Stepping, 42mm Square, Single Shaft, 0.75 amps, 1.3 Kg-Cm Torque, 5-Wire
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Basic Step Angle [FULL/HALF] | 0.72º/0.36º |
|---|---|
| Max. holding torque | 1.3kgf.cm |
| Rotor Moment Of Inertia | 35g·cm² |
| Winding Resistance | 1.7? |
| Rated current | 0.75A/Phase |
| Motor length | 33mm |
| Shaft type | Single shaft |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval |  |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC ⎓±10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.2A |
| ElectroMagnetic brake_Static friction torque | 1.8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 3×10@(^-7)kgf.cm² |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 25ms |
| ElectroMagnetic brake_Releasing time | Max. 15ms |
| Weight | Approx. 0.34kg(approx. 0.25kg) |
