A21K-M596-S

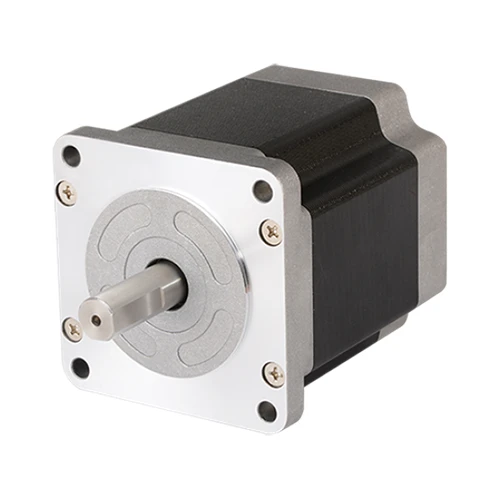

5-Phase Stepper, 85mm Square, Single Shaft, 1.40 Amps, 21.00 Kg-Cm Torque, Standard Wire connection
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Basic Step Angle [FULL/HALF] | 0.72º/0.36º |
|---|---|
| Max. holding torque | 21kgf.cm |
| Rotor Moment Of Inertia | 1400g·cm² |
| Winding Resistance | 1.76? |
| Rated current | 1.4A/Phase |
| Motor length | 68mm |
| Shaft type | Single shaft |
| Wire connection | Standard |
| Protection structure | IP30 |
| Approval |  |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC ⎓±10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.62A |
| ElectroMagnetic brake_Static friction torque | 40kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 153×10@(^-7)kgf.cm² |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 60ms |
| ElectroMagnetic brake_Releasing time | Max. 15ms |
| Weight | Approx. 2.15kg(approx. 1.7kg) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
