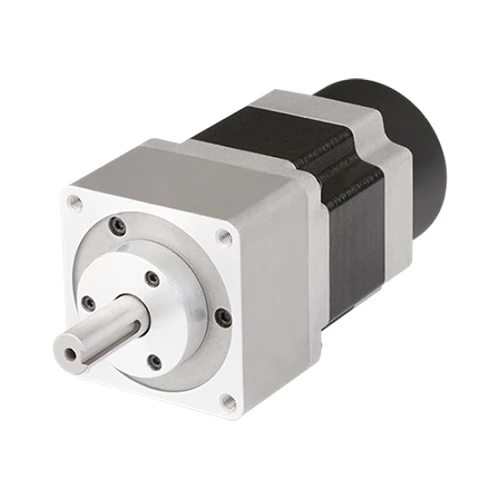

A50K-M566-GB10
5-Phase Stepper, 60mm Square, Single Shaft, 1.40 Amps, 50 Kg-Cm Torque, Geared+Brake Built In Type, 1:10 Ratio
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Basic Step Angle [FULL/HALF] | 0.072º/0.036º |
|---|---|
| Max. allowable torque | 50kgf.cm |
| Rotor Moment Of Inertia | 280g·cm² |
| Winding Resistance | 1.1Ω |
| Rated current | 1.4A/Phase |
| Motor length | 121mm |
| Shaft type | Single shaft |
| Reduction ratio | 1:10 |
| Wire connection | Pentagon |
| Protection structure | IP30 |
| Approval | @(CE) |
| Allowable speed range | 0 to 180rpm |
| Backlash | ±20'(0.33˚) |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC @(=)±10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.33A |
| ElectroMagnetic brake_Static friction torque | Min. 8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 29×10@(^-7)kgf.cm² |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 20ms |
| ElectroMagnetic brake_Releasing time | Max. 25ms |
| Absolute positon error | ±20'(0.33˚) |
| Lost motion | ±20'(0.33˚) |
| Weight | Approx. 1.65kg(approx. 1.57kg) |
