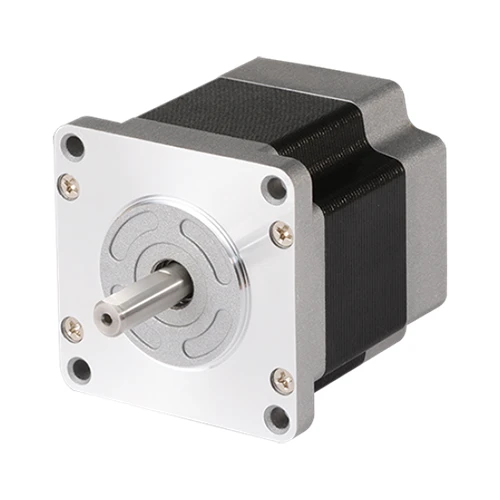

A8K-M566W-S
5-Phase Stepper, 60mm Square, Double Shaft, 1.40 Amps, 8.30 Kg-Cm Torque, 10-Wire
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Basic Step Angle [FULL/HALF] | 0.72º/0.36º |
|---|---|
| Max. holding torque | 8.3kgf.cm |
| Rotor Moment Of Inertia | 280g·cm² |
| Winding Resistance | 1.1? |
| Rated current | 1.4A/Phase |
| Motor length | 59.5mm |
| Shaft type | Dual shaft |
| Wire connection | Standard |
| Protection structure | IP30 |
| Approval |  |
| ElectroMagnetic brake_Rated excitation voltage | 24VDC ⎓±10%(no-polarity) |
| ElectroMagnetic brake_Rated excitation current | 0.33A |
| ElectroMagnetic brake_Static friction torque | 8kgf.cm |
| ElectroMagnetic brake_Rotation part inertia moment | 29×10@(^-7)kgf.cm² |
| ElectroMagnetic brake_B type brake | Power on: brake is released, power off: brake is operating |
| ElectroMagnetic brake_Operating time | Max. 25ms |
| ElectroMagnetic brake_Releasing time | Max. 20ms |
| Weight | Approx. 1.05kg(approx. 0.8kg) |
