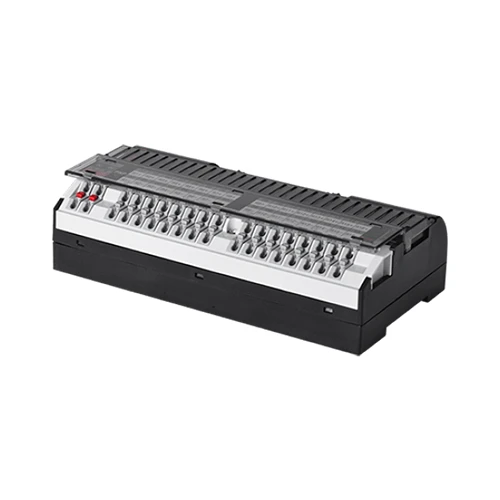

ABL-H16R6-NN
Relay terminal block, Hirose connector type, Omron G6B, 16 points, NPN Input. 24VDC.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | 24VDC ? ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 50/60Hz 3A, 30VDC ? 3A |
| Current consumption | ?20mA |
| Applied relay | G6B-1174P-FD-US[OMRON] |
| Number of relay points | 16-point |
| Terminal type | Screwless |
| Terminal pitch | ?7.8mm |
| Indicator | Power indicator: Red LED, operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60? only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mm²)(60? only) |
| Insulation resistance | ?1,000M? (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55?, storage: -25 to 65? |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block, cover: polycarbonate / CASE&BASE: modified polyphenylene oxide |
| Accessories | Jumper bar: 2 |
| Protection structure | IP20(IEC standard) |
| Approval |   |
| Weight | Approx. 446g(approx. 348g) |
