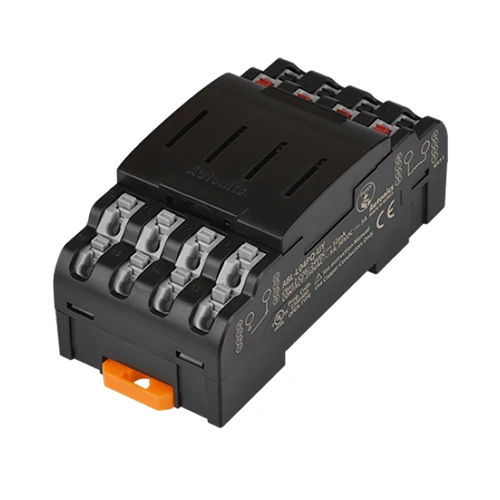

ABL-L04R6-UY
Relay terminal block, Omron G6B, 4 point, NPN or PNP Input. Varistor installed type. 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | 24VDC ⎓ ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 50/60Hz 5A, 30VDC ⎓ 5A |
| Current consumption | ?20mA |
| Applied relay | G6B-1174P-FD-US[OMRON] |
| Number of relay points | 4-point |
| Terminal type | Screwless |
| Terminal pitch | 10.2mm |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.3~1.25mm²)(60℃ only) |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 300VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: polyamide 66, conducting plate: brass, case&base: modified polyphenylene oxide |
| Accessories | Jumper bar: 1 |
| Protection structure | IP20(IEC standard) |
| Approval |  |
| Weight | Approx. 144g(approx. 88g) |
