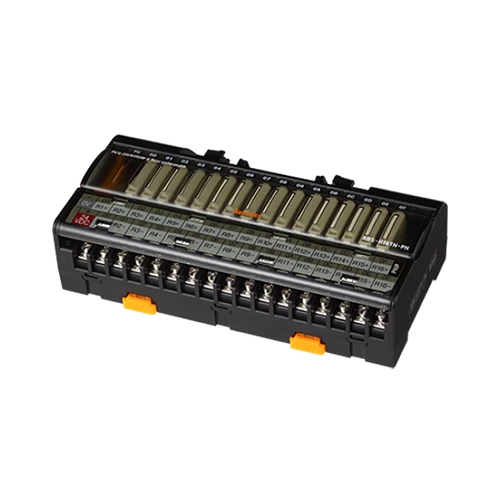

ABS-H16TN-NN
Relay Terminal Block, Hirose connector, 16Relays(250VCA 3A, 30VDC 3A), Takamisawa(Fujitsu NYP24W-K), NPN( COM+), 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | 24VDC ⎓ ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 3A, 30VDC ⎓ 3A |
| Current consumption | ?8.5mA/?13.5mA |
| Applied relay | NYP24W-K[TAKAMISAWA(Fujitsu)] |
| Number of relay points | 16-point |
| Number of connector pins | 20-pin |
| Indicator | Power indicator: Red LED, operation and disconnection indicator: Blue LED |
| Applicable cable | AWG22-16(0.30 to 1.25mm²) |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 3,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 750VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE: MPPO, BASE: Polyamide 66 (G25%), TERMINAL PIN: Brass |
| Accessories | Jumper bar: 2(Model:JB-7.62-08) |
| Approval |  |
| Weight | Approx. 318g(approx. 235g) |
