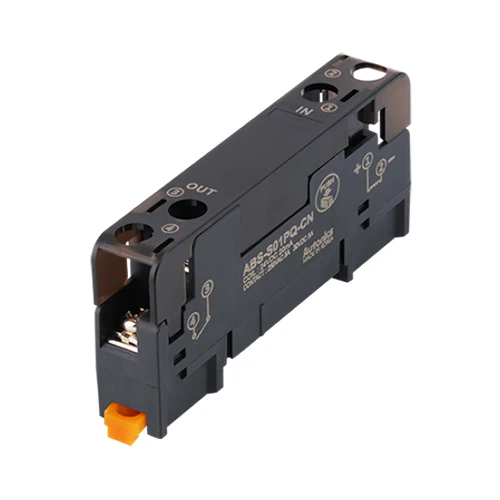

ABS-S01PQ-CN
Relay Terminal Block, Screw type, 1Relay (250VCA 5A, 30VDC 5A), Matsushita(Panasonic PQ1a-24V), 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | 24VDC ⎓ ±10% |
|---|---|
| Rated load voltage & current | 250VAC~ 5A, 30VDC ⎓ 5A |
| Current consumption | ?20mA |
| Applied relay | PQ1a-24V [MATSUSHITA(Panasonic)] |
| Number of relay points | 1-point |
| Indicator | Operation indicator: Blue LED |
| Applicable cable | AWG19?14(0.65 to 2.0mm²) |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 4,000VAC 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 1,000VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE & BASE: PA6, TERMINAL PIN: Brass |
| Approval |  |
| Weight | Approx. 430g(approx. 31g) |
