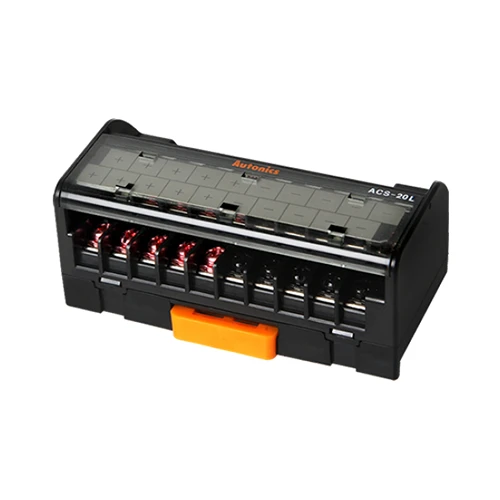

ACS-20L
Common Terminal Block, 20Terminals, Left+COM,Right-COM, 125VDC/AC, Terminal Pitch 7mm, Din Rail
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | ?125VDC ⎓, 125VAC~ 50/60Hz |
|---|---|
| Rated current | Max. 10A |
| Common type | Left +COM, Right -COM |
| Number of terminal | 20 EA |
| Terminal pitch | 7.0mm |
| Applicable cable | AWG22-16(0.30 to 1.25mm²) |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength | 600VAC 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | CASE: MPPO, TERMINAL PIN: Brass |
| Approval |  |
| Weight | Approx. 92g(approx. 61g) |
