Quality Assurance
OEM Quality Spare Parts.
In Stock (83 Available)

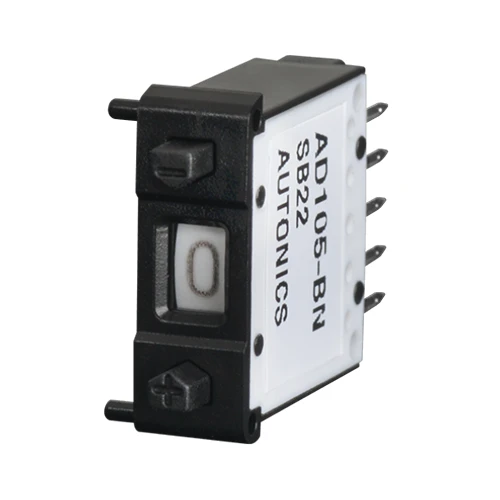

AD105-BN
Digital switch, Black Color,6mm x 18mm
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Operating force | Max. 500gf(4.9N) |
|---|---|
| Switching load capacity | 5-28VDC  , 1mA to 0.1A |
| Continuous current | Max. 100mA |
| Contact resistance | Max. 200mΩ |
| Insulation resistance_Between power off terminals | Min. 100MΩ(250VDC for 1 min.) |
| Insulation resistance_Between each terminal and power off section | Min. 100MΩ(500VDC for 1 min.) |
| Dielectric strength_Between power off terminals | 250VAC~ 50/60Hz for 1 min. |
| Dielectric strength_Between each terminal and power off section | 500VAC~ 50/60Hz for 1 min. |
| Vibration | 0.75mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 1 hour |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Life cycle_Electrical | Min. 20,000 operations |
| Life cycle_Mechanical | Min. 30,000 |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 45 to 85%RH |
| Weight | 1.3g |
