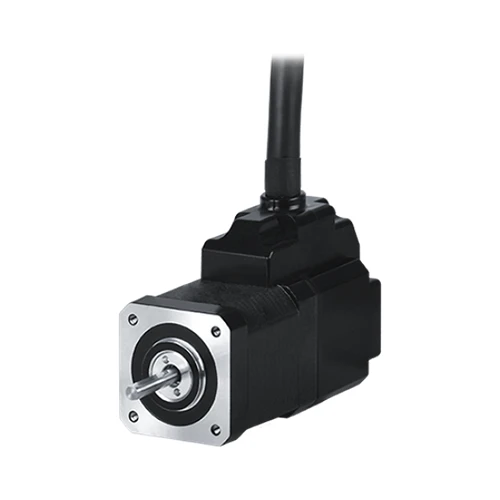

AI-M-42SA
2-Phase Closed-Loop Stepper Motor, 42mm Square, Single Shaft, 1.7A/Phase, 2.55Kgf.cm / 0.25N.m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
|---|---|
| Max. holding torque | 2.55kgf.cm |
| Rotor Moment Of Inertia | 35g·cm² |
| Winding Resistance | 1.7? |
| Rated current | 1.7A/Phase |
| Motor length | 67.5mm |
| Shaft type | Single shaft |
| Operation method | Bipolar |
| Resolution | 10,000PPR(2,500PPR×4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 300 |
| Protection structure | IP30 |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 0.45kg(approx. 0.34kg) |
