AIC-56LA-B-EC

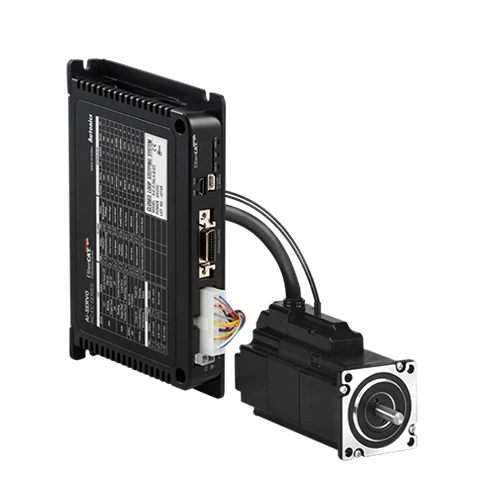

EtherCAT 2Phase Closed-loop Stepper Driver(AiC-D-56LA-EC, 3.5A/Phase, 24VDC) & Motor (Ai-M-56LA-V2, 2.2N.m), Built-in brake.
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Driver_Applied Motor | Frame size 56mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-56LA-B) |
|---|---|
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(factory default) PPR |
| Driver_Power supply | 24VDC  |
| Driver_Max. Run Current | 3.5A/Phase |
| Driver_Max. Power consumption | 120W |
| Driver_Protection structure | IP20 |
| Driver_Approval |    |
| Motor_Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
| Motor_Max. Holding Torque | 20.39kgf.cm |
| Motor_Rotor Moment Of Inertia | 480g·cm² |
| Motor_Winding Resistance | 0.93? |
| Motor_Rated Current | 3.5A/Phase |
| Motor_Motor length | 77.3mm |
| Motor_Operation Method | Bipolar |
| Motor_Resolution | 10,000PPR(2,500PPR×4-multiply) |
| Motor_Output phase | A,  , B,  , Z,  |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor_Approval | |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Unit weight(packaged) | ? 350 g (? 500 g) |
| Motor_Number Of Axes | 1-axis |
| Motor_Environment_Ambient temperature | 0 to 50?, storage: -20 to 70℃ |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | ? 1.90kg (? 1.75kg) |
