AIC-56MA-B-CL

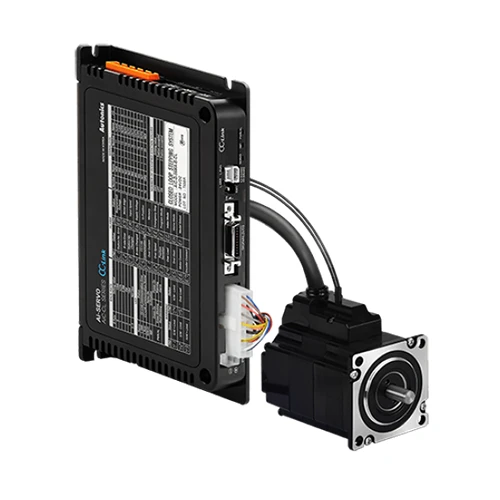

Controller-Intergrated 2-Phase Closed-Loop Stepper Motor System, AiC-D-56MA-B-CL Driver(3.5A/Phase), CC-Link, + Ai-M-56MA-B Motor(12.24Kgf.cm/1.2N.m), Built-in brake, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Driver_Applied Motor | Frame size 56mm, shaft type, built-in brake type 2-phase closed-loop stepper motor(Ai-M-56MA-B) |
|---|---|
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2) |
| Driver_Power supply | 24VDC ⎓ |
| Driver_Max. Run Current | 3.5A/Phase |
| Driver_Max. Power consumption | 120W |
| Driver_Protection structure | IP20 |
| Motor_Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
| Motor_Max. Holding Torque | 12.24kgf.cm |
| Motor_Rotor Moment Of Inertia | 280g·cm² |
| Motor_Winding Resistance | 0.57? |
| Motor_Rated Current | 3.5A/Phase |
| Motor_Motor length | 125.1mm |
| Motor_Operation Method | Bipolar constant current Drive |
| Motor_Resolution | 10,000PPR(2,500PPR×4-multiply) |
| Motor_Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Motor_Max. response frequency | 300kHz |
| Motor_Protection structure | IP30 |
| Motor_Approval |  |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 460g(approx. 300g) |
| Motor_Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | ? 1.52kg(? 1.38kg) |
