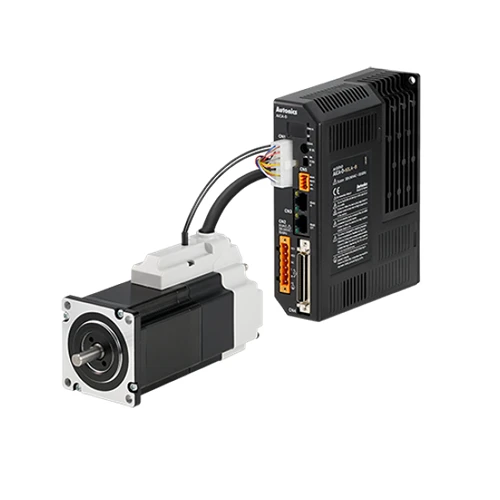

AICA-60LA-B
Controller-Intergrated 2-Phase Closed-Loop Stepper Motor System, AiCA-D-60LA-B Driver(2A/Phase) + AiA-M-60LA-B Motor(22.43Kgf.cm/2.2N.m), Built-in brake, 200~240VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 60mm 2-phase closed loop stepper motor |
| Driver_Power supply | 200-240VAC~50/60Hz |
| Driver_Max. Run Current | 2A/Phase |
| Driver_Resolution | 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000(SW2) |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Protection structure | IP20(IEC standard) |
| Driver_Approval |   |
| Driver_Weight | Approx. 1050 g (approx. 780 g) |
| Motor_Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
| Motor_Applied Driver | Frame size 86mm AC type 2-phase closed-loop stepper motor driver |
| Motor_Max. Holding Torque | 22.43kgf.cm |
| Motor_Rotor Moment Of Inertia | 490g·cm² |
| Motor_Rated Current | 2A/Phase |
| Motor_Winding Resistance | 2.4Ω |
| Inductance | 8.5 mH/Phase |
| Motor_Weight | Approx. 1.90kg (approx. 1.75kg) |
| Motor phase | 2-Phase |
| Motor_Operation Method | Bipolar constant current Drive |
| Motor_Environment_Ambient temperature | 0 to 40℃, storage: -20 to 70℃ |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Approval | |
| Motor_Protection structure | IP30 |
| Motor_Resolution | 10,000PPR(2,500PPR×4-multiply) |
| Motor_Output phase | A,  , B,  , Z,  |
| Motor_Max. response frequency | 300kHz |
