AIS-28LB

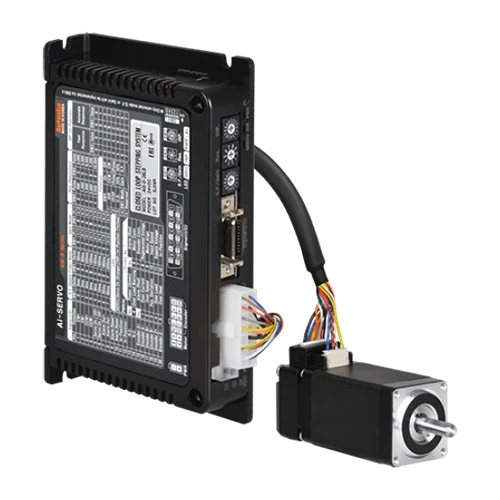

2-Phase Closed-Loop Stepper Driver & Motor, AiS-D-28LB Driver(1.0A/Phase) + Ai-M-28LB Motor(1.63kgf.cm/0.16N.m), 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 28mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-28LB) |
| Driver_Resolution | 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000, 16000 PPR(SW2) |
| Driver_Power supply | 24VDC ⎓ |
| Driver_Max. Run Current | 1.0A/Phase |
| Driver_Max. Power consumption | 60W |
| Driver_Output | In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^)) |
| Driver_Protection structure | IP20 |
| Motor_Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
| Motor_Max. Holding Torque | 1.63kgf.cm |
| Motor_Rotor Moment Of Inertia | 18g·cm² |
| Motor_Winding Resistance | 10.1? |
| Motor_Rated Current | 1.0A/Phase |
| Motor_Motor length | 65mm |
| Motor_Shaft Type | Single shaft |
| Motor_Operation Method | Bipolar |
| Motor_Resolution | 16,000PPR(4,000PPR×4-multiply) |
| Motor_Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Motor_Max. response frequency | 1,000kHz |
| Motor_Protection structure | IP30 |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 400g(approx. 290g) |
| Motor_Number Of Axes | 1-axis |
| Motor_Environment_Ambient temperature | 0 to 50?, storage: -20 to 70? |
| Motor_Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Motor_Weight | Approx. 0.342kg (approx. 0.248kg) |
