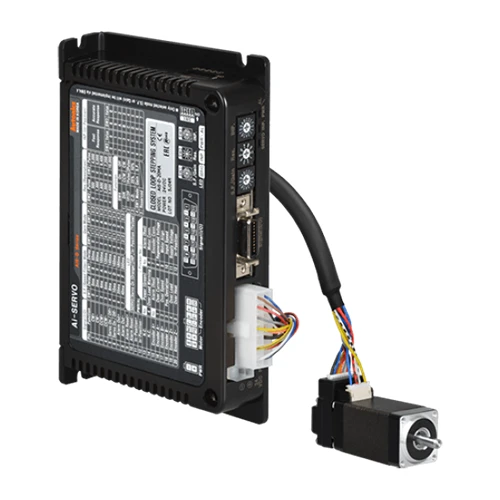

AIS-D-20MA
2-Phase Closed-Loop Stepper Motor Driver, 0.6A/Phase, 24VDC, ( Req. Ai-M-20MA Motor )
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Driver_Operation Method | Bipolar constant current Drive |
|---|---|
| Driver_Applied Motor | Frame size 20mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-20MA) |
| Driver_Resolution | 500, 1000, 1600, 2000, 3600, 4000, 5000, 6400, 7200, 10000 PPR(SW2) |
| Driver_Power supply | 24VDC ⎓ |
| Driver_Max. Run Current | 0.6A/Phase |
| Driver_Max. Power consumption | 50W |
| Driver_Output | In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^)) |
| Driver_Protection structure | IP20 |
| Motor phase | 2-Phase |
| Driver_Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Driver_Environment_Ambient humidity | 35 to 85%RH, storage: 10 to 90%RH |
| Driver_Weight | Approx. 400g(approx. 290g) |
| Motor_Number Of Axes | 1-axis |
