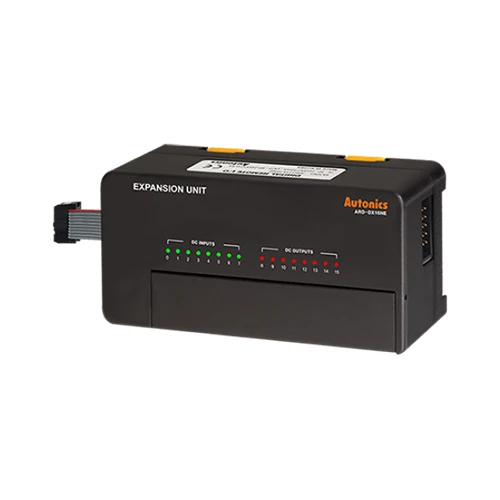

ARD-DX16NE
Remote I/O Device Net, Expansion module, DC NPN input I/O each 8 points, Control input 10 -28VDC, 10mA / contact, Control output 0.5A/point, Power 12 - 28VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Network | DeviceNet |
|---|---|
| Type | Digital |
| Number Of I/Os_Input | 8-point (NPN) |
| Number Of I/Os_Output | 8-point (NPN) |
| I/O specification | Voltage: 10-28VDC  (voltage drop: max. 0.5V)Current: Input 10mA, Output 0.5A/point(leakage current:max. 0.5mA) |
| Module type | Expansion unit |
| Power supply | 24VDC |
| Protection structure | IP20 |
| Approval |   |
| Material | Front case, Body Case: PC, Rubber cap: NBR |
| Insulation type | I/O and inner circuit: insulated, DeviceNet and inner circuit: non-insulated, Power and DeviceNet: non-insulated |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 75? |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 140g |
