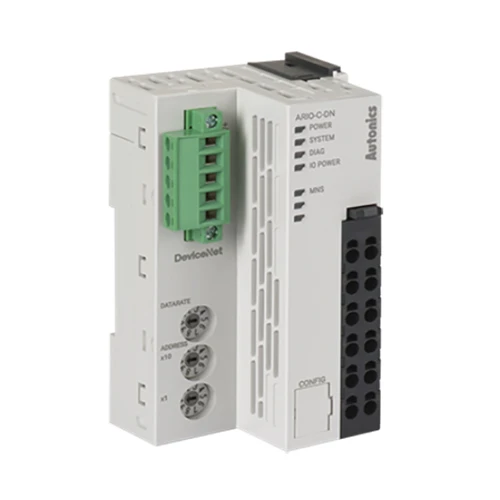

ARIO-C-DN
Slim Remote I/O, Coupler, DeviceNet, 24VDC, Max.32 units
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Coupler type | DeviceNet |
|---|---|
| Power supply_BUS(external consump.) | 24VDC 400mA (Max. 9.6W |
| Power supply_BUS(internal supply) | 960mA (Max. 4.8W |
| Power supply_I/O | 24VDC, max. 4,000mA (max. 96W, max. 2,000mA/CH, 2CH/COM) |
| Power consumption_Coupler | 24VDC standby/run: 200mA, max. load: 400mA (coupler max. load) |
| Communication speed | 500kbps |
| Memory_Input | 255 byte |
| Memory_Output | 255 byte |
| Max. connections for modules | 32 units |
| Comm. connector | 5-pin PCB connector |
| Mounting type | DIN rail mounting |
| Setting and monitoring | PC connection with USB 2.0 Micro type connector (comprehensive device management program, DAQMaster) |
| Insulation resistance | 100M? or more (500VDC megger basis) |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
| Material | Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene |
| Approval |  |
| Weight | Approx. 265g (approx. 165g) |
