ARIO-S-AI02V2

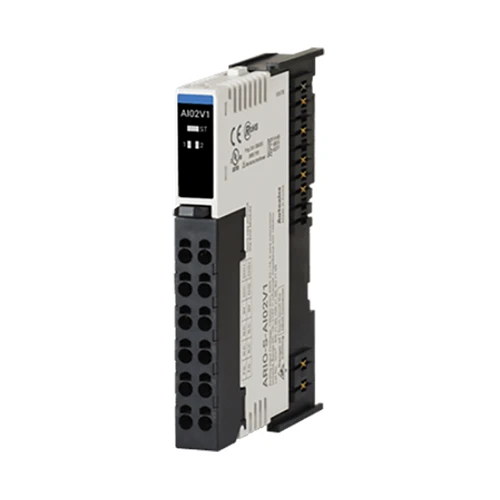

Slim Remote I/O, I/O Module, 2ch Analog Voltage Input,Range:0 to 10VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| I/O method | Voltage input |
|---|---|
| I/O range | 0 to 10VDC |
| Accuracy_Room temp. | ±0.3% F.S. |
| Accuracy_Out of room temp. | ±0.6% F.S. |
| Input impedance | Min. 1MΩ / Max. 250Ω |
| Status indicator ON conditions | ≥1VDC |
| Resolution | 12bit |
| Power consumption_ABUS | 5VDC, max. 180mA (max. 0.9W) |
| Power consumpti_I/O | max. 100mA (max. 0.5W) |
| Mounting type | DIN rail mounting |
| Insulation resistance | 100MΩ (at 500VDC megger) I/O to inner circuit: photocoupler insulated, between channels: non-insulated |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
| Material | Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene |
| Weight | Approx. 75g(approx. 108g) |
