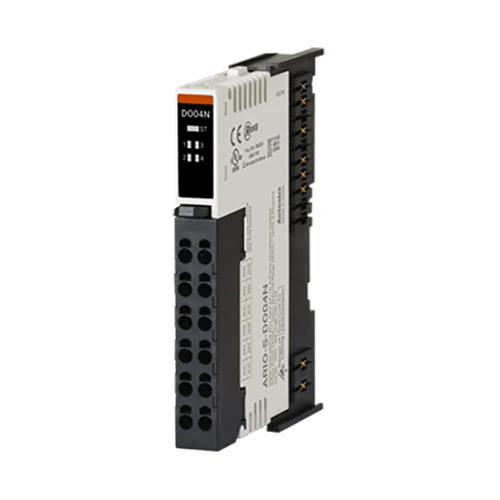

ARIO-S-DO04N
Slim Remote I/O, I/O Module, 4ch Digital Output NPN
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| I/O common | NPN |
|---|---|
| Output leakage voltage | Max. 1.2VDC⎓ |
| I/O signal level | 24VDC⎓±10% |
| Rated output current_4CH | Max. 500mA/CH |
| Rated output current_8CH | Max. 500mA/CH |
| On delay time | Max. 0.5ms |
| Off delay time | Max. 1.5ms |
| Power consumption_ABUS | max. 180mA (max. 0.9W) |
| Mounting type | DIN rail mounting |
| Insulation resistance | 100M? (at 500VDC@(=) megger) I/O to inner circuit: photocoupler insulated, between channels: non-insulated |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
| Material | Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene |
| Approval |  |
| Weight | Approx. 108g (approx. 75g) |
