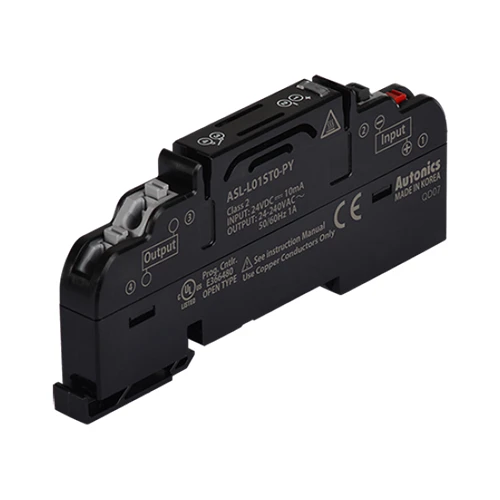

ASL-L01ST0-PY
SSR Terminal Block, Screwless type, 1 SSR, Fujitsu SN-24A01C SSR, PNP Input, Varistor Installed, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage | 24VDC  ±10% |
|---|---|
| Rated load voltage & current | 24-240VAC~ 50/60Hz 1A |
| Current consumption | ≤10mA |
| Applied SSR | SN-24A01C[Fujitsu] |
| Terminal type | Screwless |
| Terminal pitch | 9.0mm(arranging over 2 units) |
| Indicator | Operation indicator: Blue LED |
| Applicable cable_Solid wire | Ø0.6 to Ø1.25mm(60℃ only) |
| Applicable cable_Stranded wire | AWG22-16(0.30 to 1.25mm²)(60℃ only) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Dielectric strength_Between coil-contacts | 2,500VAC~ 50/60Hz for 1 minute |
| Dielectric strength_Between same contacts | 300VAC~ 50/60Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Terminal block: Polyamide 66, Conducting plate: Brass, CASE&BASE: Poly phenylene sulfide |
| Accessories | Jumper bar: 1 |
| Protection structure | IP20(IEC standard) |
| Weight | Approx. 136g(approx. 21g) |
