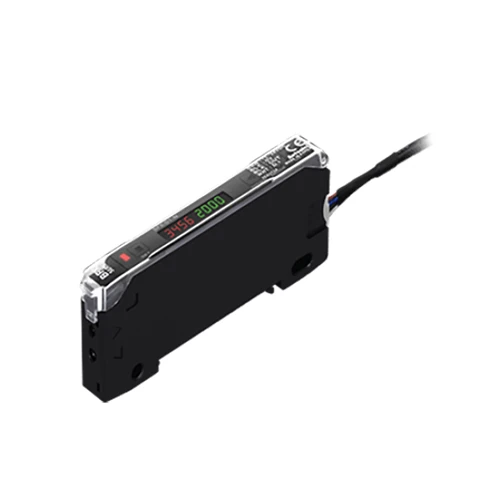

BFX-D1-N
Amplifier, Fiber Optic, LCD Dual-display, Auto Tune, NPN Output, 12-24 VDC (fiber req'd)
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Type | Dual display |
|---|---|
| Display method | 4-digit 7-segment LCD |
| Light source | Red LED(660nm) |
| Response time | 50℃, 150?, 500?, 4ms, 10ms |
| Power supply | 12-24VDC ⎓ |
| Current consumption | Max. 50mA |
| Operation mode | Light ON/Dark ON(set by parameter) |
| Control output | NPN open collector |
| Timer function | OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms) |
| Sensitivity adjustment | Manual Teaching(auto-tuning, 1-point, 2-point, positioning) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 50? |
| Protection structure | IP40 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: polyketon, cover: polycarbonates |
| Accessories | Connector type wire (Ø4mm, 4-wire, 2m / AWG22, core diameter: 0.08mm, number of cores: 60, insulator diameter: Ø1.25mm) |
| Weight | Approx. 115g(approx. 16g) |
