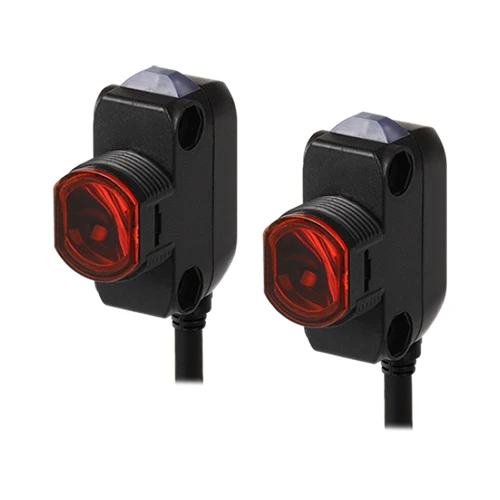

BH20M-TDT
Sensor, Photo, Through beam, 20m Sensing distance, Light & Dark On, NPN/PNP Open Collector Simultaneous 2 Output, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 20m |
| Sensing target | Opaque material of min. Ø20mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø4, 2.1m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Protection structure | IP67 |
| Approval |   |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonates, LED indicator: Polycarbonates, Sensing part: Polymethyl methacrylate acrylic |
| Accessories_Common | Adjustment screwdriver, fixing bracket, M18 fixing nut, fixing cap, M3 bolt, M3 nut |
| Weight | Approx. 190g(approx. 120g) |
