BJ100-DDT

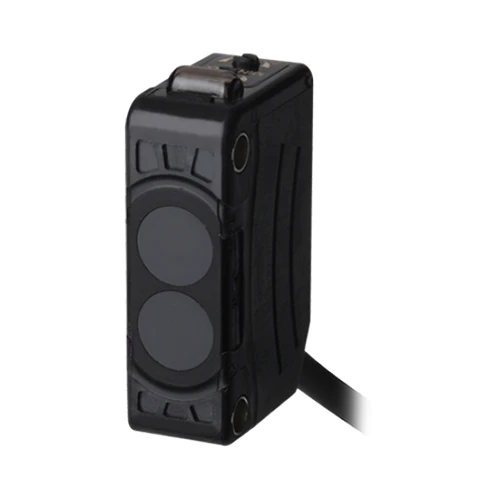

Sensor, Photo, Diffuse, 100mm Sensing distance, Light & Dark On, NPN Output, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø3.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -40 to 70℃ |
| Protection structure | IP65 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% of sensing distance |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate |
| Accessories_Common | Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver |
| Weight | Approx. 70g (approx. 45g) |
