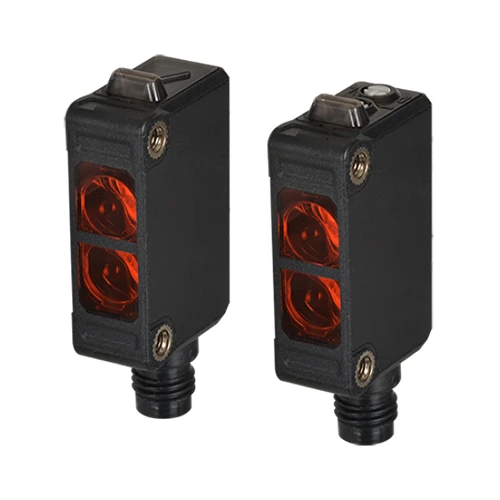

BJR10M-TDT-C-P-F
Sensor, Photo, Oil Proof, Through beam, 10M Sensing distance, Connector Type, Light & Dark On, PNP Output, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Oil resistant/oil proof | Oil proof type |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 10m |
| Sensing target | Opaque material of min. Ø12mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | M8 connector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -40 to 70℃ |
| Protection structure | IP67(IEC standard), IP67F(JEM standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common | Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Weight | Approx. 65g(approx. 12g) |
