AUTONICS

    Out Of Stock

    BJR15M-TDT-W-F

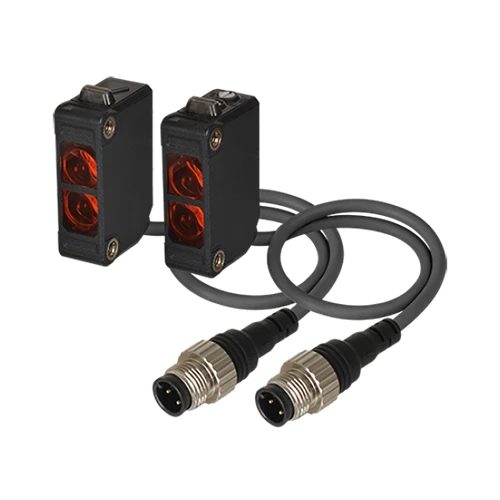

    Sensor, Photo, Oil Proof, Through beam, 15M Sensing distance, Cable Connetor Type, Light & Dark On, NPN Output, 10-30 VDC


    $169.57 $141.31 / each
    1
    BJR15M-TDT-W-F
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Oil resistant/oil proofOil proof type
    Sensing typeThrough-beam type
    Sensing distance15m
    Sensing targetOpaque material of min. Ø12mm
    Light sourceInfrared LED(850nm)
    Response timeMax. 1ms
    Power supply10-30VDC EQ Â±10%(ripple P-P: max. 10%)
    Current consumptionEmitter/Receiver: Max. 20mA
    Sensitivity adjustmentSensitivity adjuster
    Operation modeLight ON/Dark ON(set by switch)
    Control outputNPN open collector
    Connection typeØ4mm, 3-wire, 300mm (emitter of through-beam type: Ø4mm, 2-wire, 300mm),
    M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm)
    Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature-25 to 60℃, storage: -40 to 70℃
    Protection structureIP67(IEC standard), IP67F(JEM standard)
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    MaterialCase: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
    Accessories_CommonFixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver
    WeightApprox. 105g(approx. 55g)
