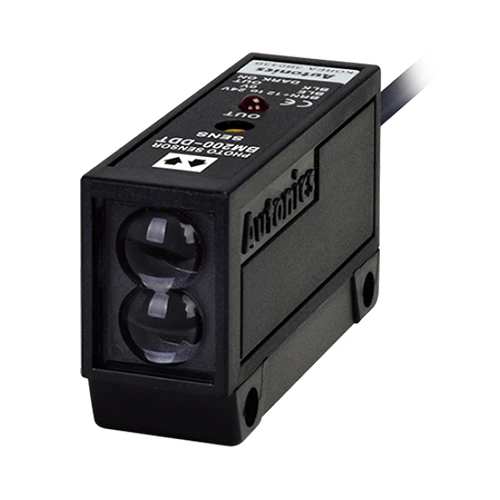

BM200-DDT
Sensor, Photo, Diffuse Reflective, Light On, NPN Output, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material, Transparent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 3ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 40mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON(option: Dark ON) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 10% at sensing distance |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acryl, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories_Individual | Adjuster driver |
| Accessories_Common | Fixing bracket, Bolts, Nuts |
| Weight | Approx. 88g |
