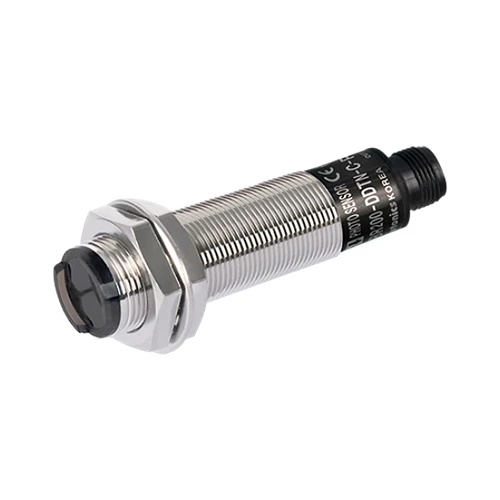

BR200-DDTN-C-P
Sensor, Photo, Diffuse Reflective, Narrow Beam, 18mm Round Brass, 200 mm Range, Light & Dark On, PNP Output, Connector Type, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Narrow beam reflective type |
|---|---|
| Sensing distance | 200mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 75℃ |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Material | Case - Brass, Ni-plate Sensing part - Polycarbonate lens |
| Accessories | M18 fixing nut: 2, washer:1, adjustment screwdriver |
| Weight | Approx. 90g(approx. 50g) |
