AUTONICS

    Out Of Stock

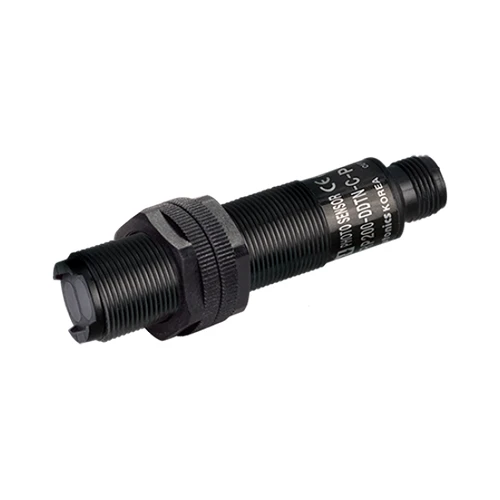

    BRP200-DDTN-C-P

    Sensor, Photo, Diffuse Reflective, 18mm Round Plastic, 200m sensing, Light & Dark On, PNP Output, Connector Type,12-24 VDC


    $75.97 $63.31 / each
    1
    BRP200-DDTN-C-P
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Sensing typeNarrow beam reflective type
    Sensing distance200mm
    Sensing targetOpaque, Translucent material
    Light sourceInfrared LED(850nm)
    Response timeMax. 1ms
    Power supply12-24VDC EQ Â±10%(ripple P-P: max. 10%)
    Current consumptionMax. 45mA
    Sensitivity adjustmentSensitivity adjuster
    Operation modeLight ON/Dark ON(set by control wire)
    Control outputPNP open collector
    Connection typeConnector type(M12)
    Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature-10 to 60℃, storage: -25 to 75?
    Protection structureIP66
    ApprovalCE
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Hysteresis(distance)Max. 20% at rated sensing distance
    MaterialCase-Polyamide(black), Sensing part-Polycarbonate lens
    AccessoriesM18 fixing nut: 2, adjustment screwdriver
    WeightApprox. 70g(approx. 30g)
