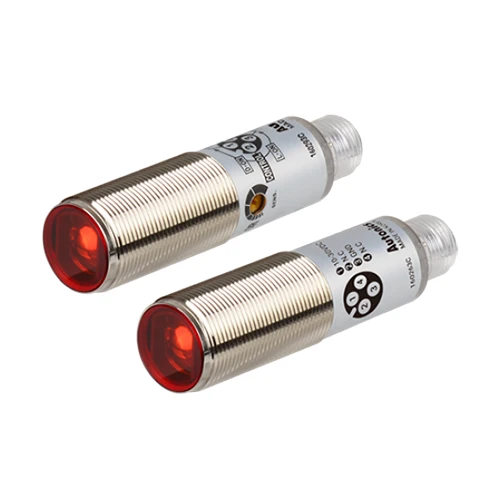

BRQM5M-TDTA-C
Sensor, Photo, Metal body, Through beam, 5M Sensing Distance, Light & Dark On, NPN Output, Connector type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 5m |
| Sensing target | Opaque material of min. Ø7mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ⎓ ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) |
| Control output | NPN open collector |
| Connection type | Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | ?Case: brass, Ni-plate •Lens, Lens cover: polymethyl methacrylate acrylic |
| Accessories_Common | M18 fixing nut: 4, adjustment screwdriver |
| Weight | Approx. 160g (approx. 50g) |
