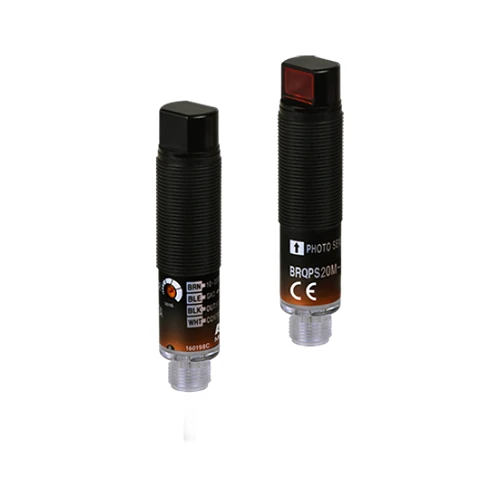

BRQPS20M-TDTA-C-P
Sensor, Photo,Plastic body, Side sensing type, Through beam, 20M Sensing Distance, Light & Dark On, PNP Output, Connector type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 20m |
| Sensing target | Opaque material of min. Ø7mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ⎓ ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate Lens, Lens cover: Polymethyl Methacrylate Acrylic |
| Accessories_Common | M18 fixing nut: 4, adjustment screwdriver |
| Weight | Approx. 120g(approx. 35g) |
