AUTONICS

    In Stock (7 Available)

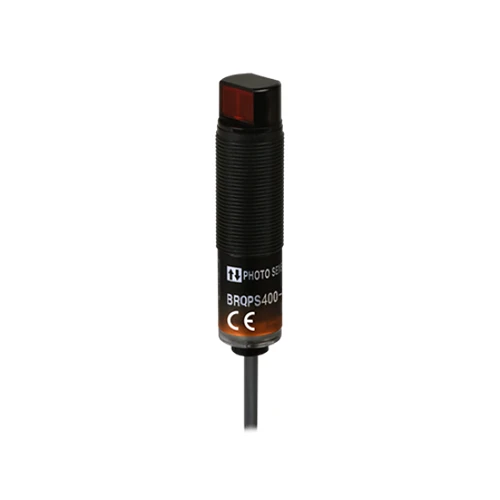

    BRQPS400-DDTA

    Sensor, Photo, Plastic body, Side sensing type, Diffuse reflective, 400mm Sensing Distance, Light & Dark On, NPN Output, 10-30 VDC


    $99.26 $82.72 / each
    1
    BRQPS400-DDTA
    AUTONICS
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Sensing typeDiffuse reflective type
    Sensing distance400mm
    Sensing targetOpaque, Translucent material
    Light sourceRed LED(660nm)
    Response timeMax. 1ms
    Power supply10-30VDC EQ Â±10%(ripple P-P: max. 10%)
    Current consumptionMax. 30mA
    Sensitivity adjustmentSensitivity adjuster
    Operation modeLight ON/Dark ON(set by control wire)
    Control outputNPN open collector
    Connection typeCable type(Ø4, 2m)
    Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature-25 to 60℃, storage: -30 to 70℃
    Protection structureIP67(IEC standard)
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Hysteresis(distance)Max. 20% at rated sensing distance
    MaterialCase: Polycarbonate
    Lens, Lens cover: Polymethyl Methacrylate Acrylic
    WeightApprox. 130g(approx. 70g)
