AUTONICS

    Out Of Stock

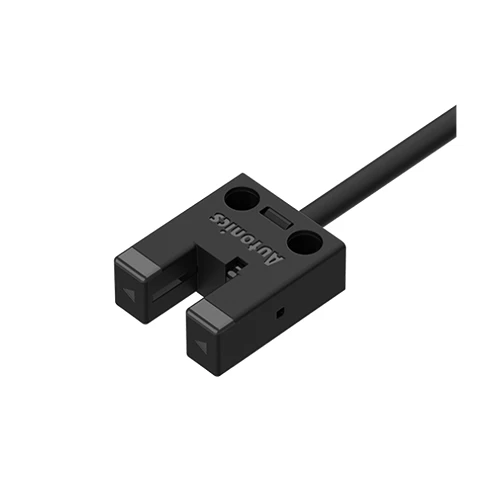

    BS3-U1M


    $39.11 $32.59 / each
    1
    BS3-U1M
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Sensing typeThrough-beam type
    Sensing distance5mm
    Sensing targetOpaque
    Min. sensing target≥ 0.8 mm × 1.8 mm
    Hysteresis(distance)≤0.05mm
    Response timeLight ON: Max. 20㎲,
    Dark ON: Max. 100㎲
    Response frequency2kHz
    Light sourceInfrared LED
    Peak emission wavelength940nm
    Operation modeLight ON/Dark ON(set by control wire)
    IndicatorOperation indicator (red LED)
    WeightApprox. 50g
    Power supply5-24VDC EQ Â±10%(ripple P-P : max. 10%)
    Current consumptionMax. 15mA
    Control outputNPN open collector
    Load voltage≤ 24VDCEQ
    Load currentMax. 50mA
    Residual voltageNPN: ≤1.2VDCEQ, PNP: ≤ 1.2VDCEQ
    Protection circuitReverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
    Insulation resistance≥20 MΩ (250 VDCEQ megger)
    Noise immunityThe square wave noise (pulse width: 1㎲) by the noise simulator ±240VDCEQ
    Dielectric strength1,000VAC 50/60Hz for 1 minute
    Vibration1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours
    Shock15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times
    Environment_Ambient illuminationFluorescent lamp: Max. 1,000lx(received illumination)
    Environment_Ambient temperature-20 to 55℃, storage : -25 to 85℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Protection structureIP50 (IEC standard)
    ConnectionCable type
    Connection typeØ2.5mm, 4-wire, 1m
    CoreAWG28 (0.08mm), 19-core, insulator out diameter: Ø0.65mm
    MaterialCase: PBT, Sensing part: PC
