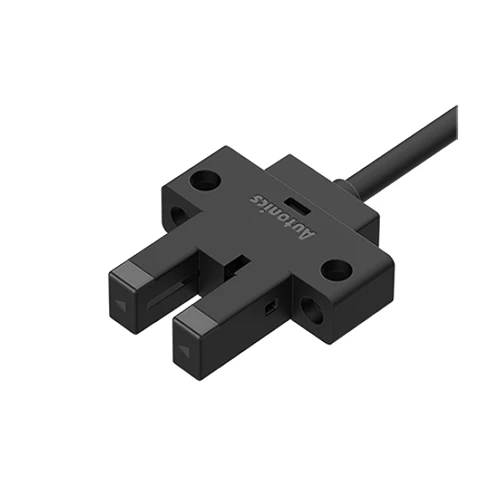

Sensing type | Through-beam type |
---|---|
Sensing distance | 5mm |
Sensing target | Opaque |
Min. sensing target | ?Ã0.8mmÃ2mm |
Hysteresis(distance) | ?0.05mm |
Response time | Light ON: Max. 20?, Dark ON: Max. 100? |
Response frequency | 2kHz |
Light source | Infrared LED |
Peak emission wavelength | 940nm |
Operation mode | Light ON/Dark ON(set by control wire) |
Indicator | Operation indicator (red LED) |
Approval | |
Weight | Approx. 50g |
Power supply | 5-24VDC |
Current consumption | Max. 30mA |
Control output | PNP open collector |
Load voltage | ?30VDC |
Load current | Max. 100mA |
Residual voltage | NPN: ?1.2VDC |
Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
Insulation resistance | ?20 M? (250 VDC |
Noise immunity | The square wave noise (pulse width: 1?) by the noise simulator ±240VDC |
Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
Vibration | 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours |
Shock | 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times |
Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
Environment_Ambient temperature | -20 to 55ââÆ, storage : -25 to 85ââÆ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Protection structure | IP50 (IEC standard) |
Connection | Cable type |
Connection type | Ã3 mm, 4-wire, 1m |
Core | AWG28 (0.08mm) |
Material | Case: PBT, Sensing part: PC |
