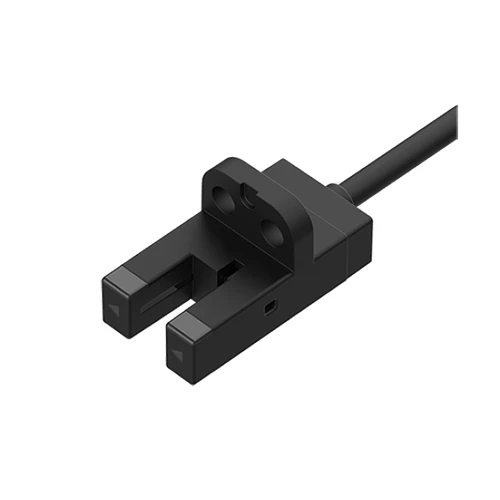

BS5-V1R-P
Photomicro Sensor, Light & Dark On, Cable Type, PNP Output, V-Type, 5-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 5mm |
| Sensing target | Opaque |
| Min. sensing target | ≥Ø0.8mm×2mm |
| Hysteresis(distance) | ≤0.05mm |
| Response time | Light ON: Max. 20㎲, Dark ON: Max. 100㎲ |
| Response frequency | 2kHz |
| Light source | Infrared LED |
| Peak emission wavelength | 940nm |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Indicator | Operation indicator (red LED) |
| Weight | Approx. 50g |
| Power supply | 5-24VDC  ±10%(ripple P-P : max. 10%) |
| Current consumption | Max. 30mA |
| Control output | PNP open collector |
| Load voltage | ≤30VDC |
| Load current | Max. 100mA |
| Residual voltage | NPN: ≤1.2VDC, PNP: ≤ 1.2VDC |
| Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Insulation resistance | ≥20 MΩ (250 VDC megger) |
| Noise immunity | The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC |
| Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
| Vibration | 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours |
| Shock | 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage : -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 (IEC standard) |
| Connection | Cable type |
| Connection type | Ø3 mm, 4-wire, 1m |
| Core | AWG28 (0.08mm) |
| Material | Case: PBT, Sensing part: PC |
