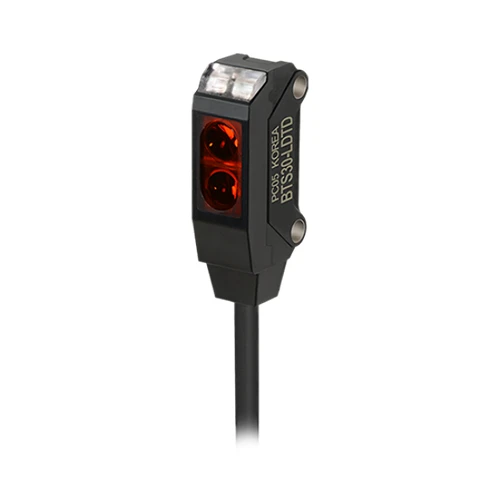

BTS30-LDTD
Sensor, Photo, Convergent Reflective Type, 5 to 30mm Sensing Distance, Dark On, NPN Output, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Convergent reflective type |
|---|---|
| Sensing distance | 5 to 30mm |
| Sensing target | Opaque, Translucent material(min. sensing target: Ø0.15mm) |
| Light source | Red LED(650nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 20mA |
| Operation mode | Dark ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø2.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -30 to 70℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 15% of maximum sensing distance |
| Material | Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A) |
| Weight | Approx. 45g(approx. 25g) |
