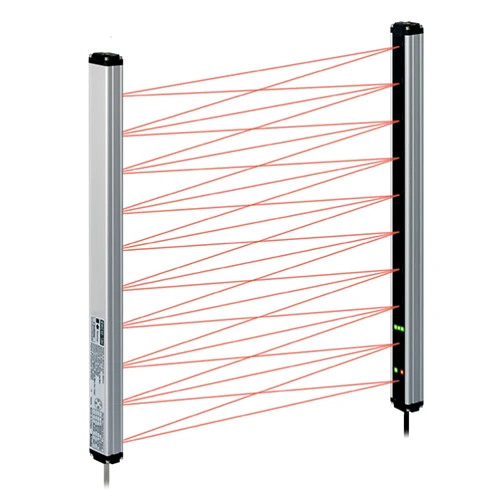

BWC40-20H
Sensor, Area, NPN open collector output. 20pcs & 40mm pitch optical axis , 820mm length, Light ON, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type(cross beam) |
|---|---|
| Sensing distance | 1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 40mm |
| Number of optical axes | 20 |
| Sensing height | 760mm |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Control output | NPN open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable connector type(Ø5, 300mm, M12) |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Ø50mm |
| Response time | Max. 50ms |
| Material | Case: Aluminum, Sensing part and indicator: Acrylic |
| Cable specification | Ø5mm, 4-wire, 300mm, M12 connector |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H) |
