AUTONICS

    Out Of Stock

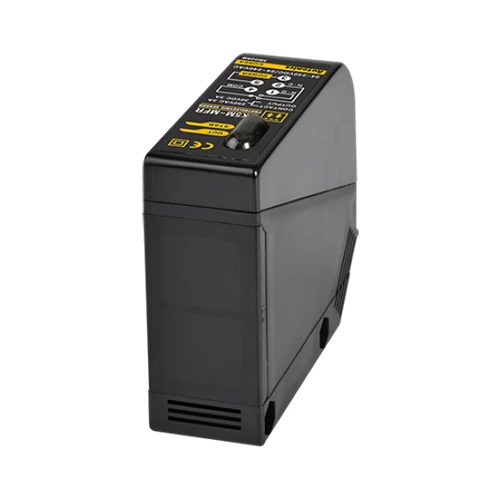

    BX5M-MFR

    Sensor, Photo, Retroreflective, 5M Sensing Distance, Light & Dark On, Relay Output, 24-240 VAC & VDC


    $103.73 $86.44 / each
    1
    BX5M-MFR
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Sensing typeRetroreflective type(standard type)
    Sensing distance5m(MS-2)
    Sensing targetOpaque material of min. Ø60mm
    Light sourceInfrared LED(850nm)
    Response timeMax. 20ms
    Power supply24-240VAC~ ±10% 50/60Hz, 24-240VDC EQ Â±10%(ripple P-P: max. 10%)
    Current consumptionMax. 3VA
    Sensitivity adjustmentSensitivity adjuster
    Operation modeLight ON/Dark ON(set by switch)
    Control outputRelay
    Connection typeTerminal block type
    Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature-20 to 55℃, storage: -25 to 70℃
    Protection structureIP66
    ApprovalCE
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    MaterialCase, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,
    Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
    Accessories_IndividualReflector(MS-2)
    Accessories_CommonAdjuster driver, Fixing bracket, Bolts, Nuts
    WeightApprox. 130g
