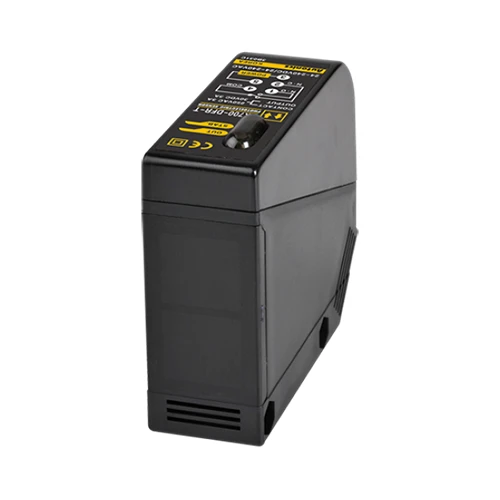

BX700-DFR-T
Sensor, Photo, Diffuse Reflective, 700mm Sensing Distance, Light & Dark On, Relay Output, Timer, 24-240 VAC & VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 700mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 20ms |
| Power supply | 24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 3VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | Relay |
| Timer function | Timer Function |
| Connection type | Terminal block type |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 116g |
