CH40-HP020-4L

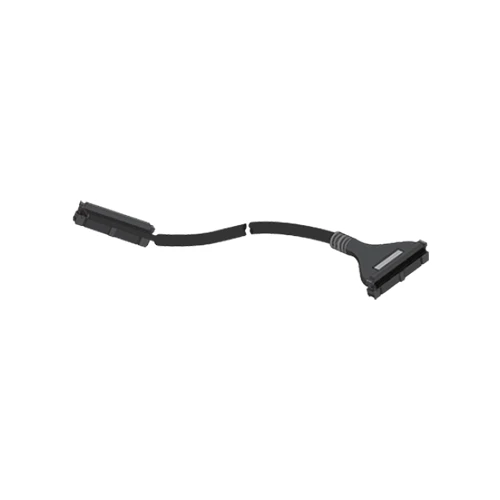

I/O Cable, Hirose Plug - Hirose Plug, 40 Pin, 2M Cable, Left Type
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Connector for PLC | Hirose 40pin socket |
|---|---|
| Connector for terminal block | Hirose 20pin/40pin/50pin socket |
| Number of connector pins | 40-pin |
| Applicable cable | UL 20276 TWIST 20C/40C/50C |
| Conductor characteristics | 7/0.127mm(AWG 28)×20P, 7/0.127mm(AWG 28)×10P, 7/0.127mm(AWG28)×25P |
| Insulation diameter | 0.12mm² |
| Cable diameter | Ø7.2mm(40C) / 8.9mm(50C) |
| Rated current | ?1A |
| Conductor resistance | ?0.223?/m |
| Insulation voltage | 500VAC 50/60Hz for 1 min. |
| Insulation resistance | ?15M?/km |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 169g |
