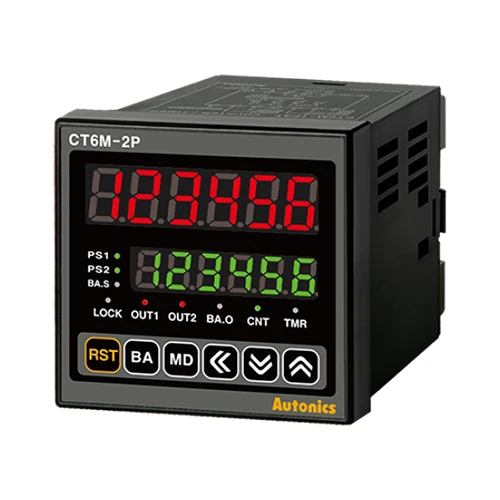

CT6M-2P4T
Counter/Timer, W72xH72mm, 6-Digit, LED, 2 Preset, PNP or NPN Input, Prescale value setting, Batch, 2 Relay SPDT(1c)+SPST(1a) 250VAC 5A, 3 NPN Open Collector Output, RS485 Communication output, 100-240 VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 6-digit 7-segment LED |
|---|---|
| Operation method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
| Power supply | 100-240VAC~ 50/60Hz |
| Time operation | POWER ON START SIGNAL ON START |
| External Power Supply | Max. 12VDC  ±10%, 100mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
| Min. signal Width | 1ms/20ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
| Control output_Type | 2-stage preset |
| Control output_Relay | SPST (1a): 1, SPDT (1c): 1 |
| Control output_NPN open collector | 2 |
| Communication output | RS485 |
| Protection structure | IP65(front panel) |
| Approval |   |
| Counter_Counting range | -99999 to 999999 |
| Counter_Scale | Decimal point up to fifth digit |
| Counter_Min. input signal width | RESET: Selectable 1ms/20ms |
| Timer_Min. input signal width | INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 322g (approx. 252g) |
